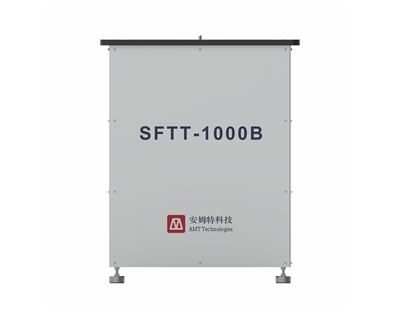

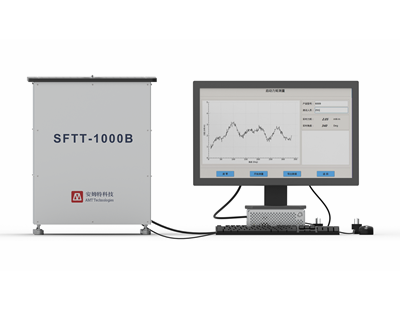

SFTT-1000B

Precision, reliability, simplicity and efficiency

High accuracy

The accuracy is 0.5% F.S.

Wide measurement range

Interchangeable sensors for different ranges

Multiple measurement modes

Running torque and starting torque can be tested

Simple and easy measurement

Equippped with a 19-inch screen

SFTT-1000B Specifications

Dimensions450 mm×450 mm×700 mm（D×W×H）
AC PowerAC 220 V (50 Hz)
Speed Range1 rpm~25 rpm
Angle Resolution±0.1°
Rated Torque0.1/0.2/0.3/0.5/1/2/3/5/10/20/30 N·m
Accuracy0.5% F.S.
Max. frequency100 Hz
Size of measured parts3 mm~280 mm
Weight45 kg
